Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Condition: New

Processing Type: Foaming Machine

Product Type: Foam Net

Voltage: 380V/220V

Dimension(L*W*H): 1700*2700*2250MM

Warranty: 1 Year

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas

Certificazione: ISO9001:2015

Power: 45KW

Weight: 20T

Electric control system: PLC

Cleaning: Self-cleaning / no need clean solvent

Application: color steel tile, roof panel, sandwish panle with aluminum paper

Machine Type: PU continuous production line

Raw material: Poly + ISO

Finished products: PU Sandwich Panel Foam

Color: Customized

Pressure: 25 Mpa

Feature: High Efficiency

Informazioni di base

Certificazione: ISO9001:2015

Termini di pagamento e spedizione

Packaging Details: PLASTIC FILM AND STANDARD PACKING SUITABLE FOR OCEAN SHIPMENT

Supply Ability: 100 Set/Sets per Year

Descrizione di prodotto

Company Information

Our Services

I. Device Installation:
The supplier's engineers provide overseas commissioning, installation and training services free of charge to ensure that the machine is operating normally.

II. After-sales maintenance:
If the machine has quality or system software problems within 12 months after the test is accepted, we will replace or repair it free of charge. After the warranty period, materials, maintenance fees, travel expenses for personnel, and lifetime technical services will be provided.

III. After-sales training:
Our company provides free on-site technical training (trainees: 3-5; time: 2-3 days; location: customer site; training content: equipment operation, maintenance and repair and other related knowledge matters).

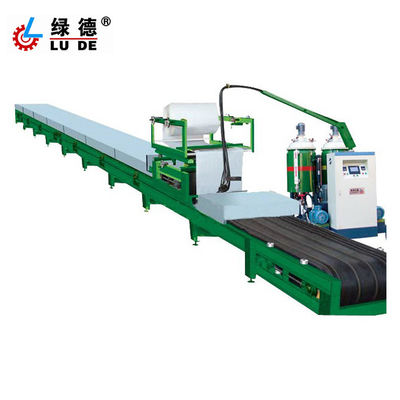

Sandwich Panel foaming machine :

Product Purpose: color steel tile, moveable plate, pu products for heat preservation, pu sheet, pu clad plate.

Product Characteristics:

Main unit: Material injection by a precision needlevalve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotatin rate digital tracking and display and automatic control; abnormity or fault alam devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

Parameter:

Item No.	GL-908 color steel plate foaming machine
Power supply	All power of the machine 15KW,4*380V/60HZ
The type of applicable foam	Rigid foam, or semi-rigid foaming, ect.
Flux of injection	60g-150g/S(Att:the flux can be configured)
Press of injectiong	0.1MPA-3.99MPA
Ratio of Mixing	100-60;100-120
Viscosity (22°)	POLY (polyethylene) 500-2000MPAS
Viscosity (22°)	ISO( polyisocyanates)500-2000MPAS
Time of injecting	Continuous
Precision of injecting	0.1/100
Pneumatic Pressure	0.6-0.8MPa
Dimensions of Machine	Width: 2.3M; Height:2.6M;Length:3.5M
Gross weight of machine	1.5 ton
Pouring Nozzle	Pour plug
Heating system	The temperature can be controlled automatically.
