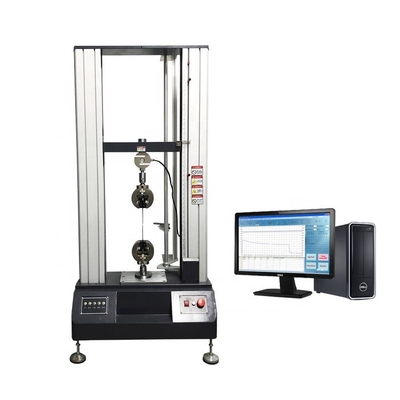

0.2%~100% (1) Grade / 0.4%~100% Universal Steel Wire Compressive Strength Tensile Testing Machine (0.5 Grade)

1.0 Sets
MOQ
0.2%~100% (1) Grade / 0.4%~100% Universal Steel Wire Compressive Strength Tensile Testing Machine (0.5 Grade)
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 2 years
Customized support: OEM, ODM, OBM
Model Number: RT-205
Power: Electronic
product name: Universal Tensile Compression Strength Testing Machine
Maximum load: 5 ton
Accurate grade: 1 grade /0.5 grade
Effective measuring range: 0.2%~100%(1 grade)/0.4%~100%(0.5 grade)
Tester resolution: Max load 1/200000,constant the resolution
Effective testing width: 350mm(can be widened according to customer's requirement )
Effective tensile stroke: 800mm;1000mm;1200mm
Range of testing speed: 0.001~200mm/min
safety: Electronic-limit protection
Overload protection: Overload 10%,automatic protection
Informazioni di base
Model Number: RT-205
Termini di pagamento e spedizione
Descrizione di prodotto
Product Description



Equipment summary:

Universal Tensile Compression Strength Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5ton.


Specification
ITEM
DESCRIPTION
Brand Name
RIGHT
Model Number
RT-205
Product name
Universal Tensile Compression Strength Testing Machine
Maximum load
50KN
Accurate grade
1 % /0.5 %
Effective measuring range
0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy
the value ±1% / the value ±0.5%
Tester resolution
Max load 1/200000, regardless of inside and outside, constant the resolution
Load sensor
Basic configuration sensor(max load): 1 piece
Extended configuration sensor: 1 piece
Effective tensile stoke
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Testing speed
0.001~200mm/min
Accuracy of displacement measurement
Tolerance:±0.5% / tolerance: ±0.2%
Safety
Electronic-limit protection
Return Back
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection
Overload 10%, automatic protection
Deformation of measured system(according to the requirements)
Min span :10mm,
Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm,
range of deformation:5mm,10mm,25mm
Fixture
A set of tensile clamp
Power system
Panasonic AC Servo Motor + Driver + high-precision ball screw
Unit
KG,N,LB, TON can be exchanged.
Power supply
220V , 50HZ or according to the requirement
Machine size
107*56*210cm(length*width*height)
Machine weight
（about）320 Kg
Scope of application


RT-205 Universal Tensile Compression Strength Testing Machine

it is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Product Details


Product features:

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Recommend Products
Company Profile
Dongguan Right Instrument Co., Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide. Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source. If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
FAQ
Q1: How long is the delivery time? A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time can be adjust flexible. Q2: What is the warranty for the equipment? A: One year. We can provide you lifelong technical support. Q3: What is the payment terms? A: T/T, L/C, Western Union, etc Q4: How about the products quality? A: Our products apply to ISO, ASTM, GB, etc Q5: Is it OK to print my logo on machine product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q6. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. or 100% L/C at sight . Q7: Can we test sample before place order? A: Of course,we can test sample and provide test report to you with free.
